Video of PickleRigger™ Tip-Up Setup
Video of Strike Force Adjustment on the PickleRigger™ Tip-Up
Diagram of Flag Setup

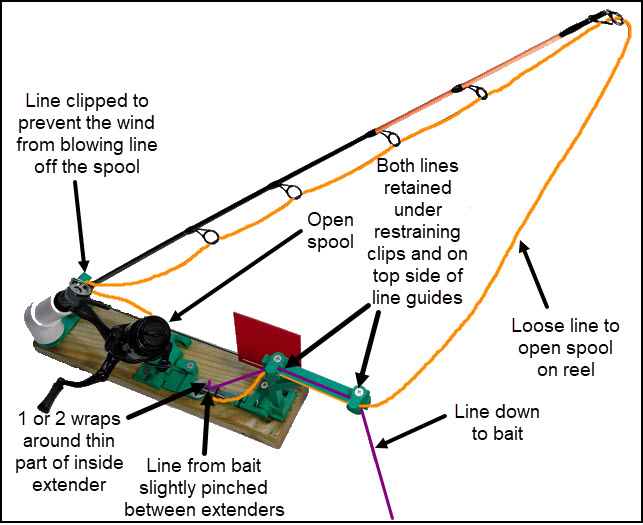

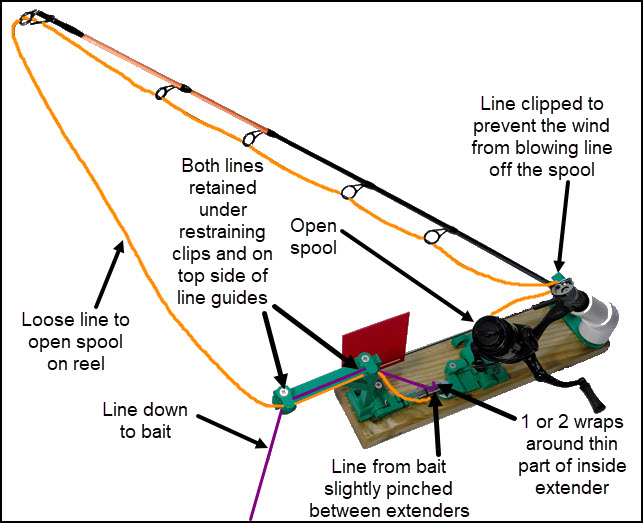

Diagram of setup overview (for Left-Hand and Right-Hand reel setups).

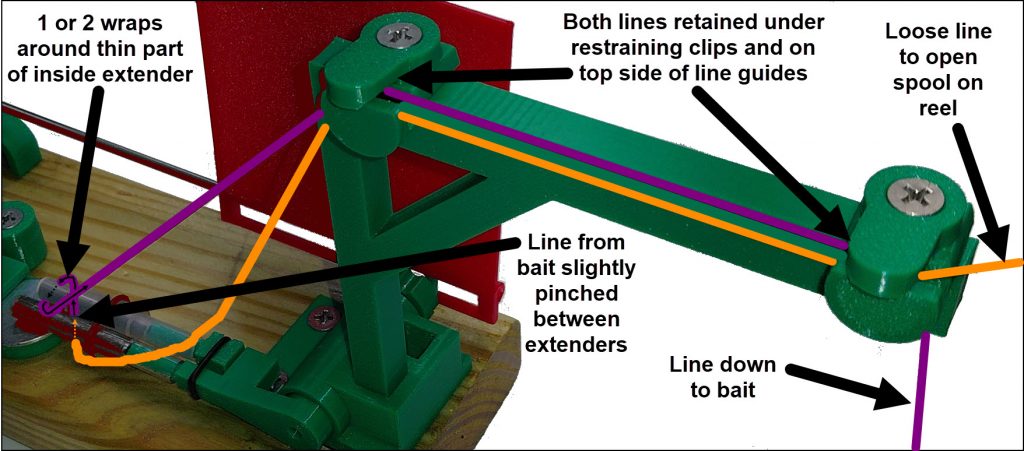

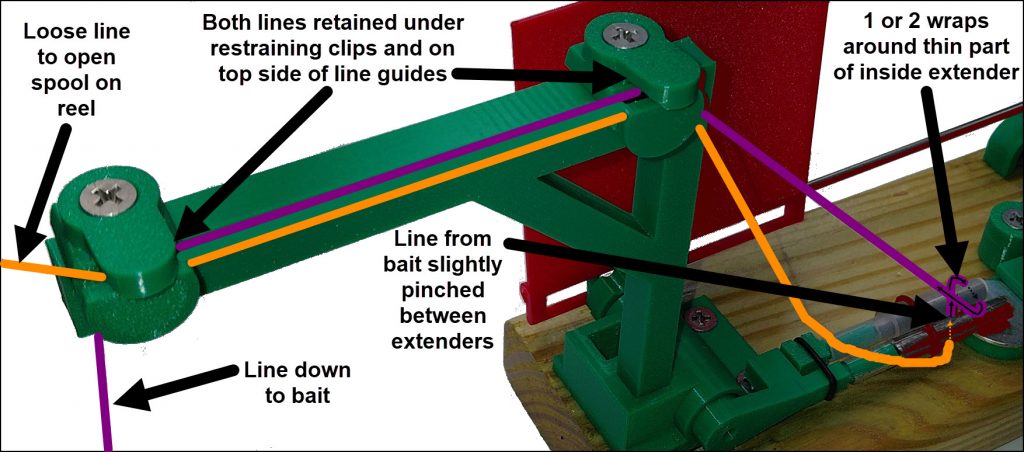

Diagram of line guided through the line guides and into the extenders (for Left-Hand and Right-Hand reel setups).

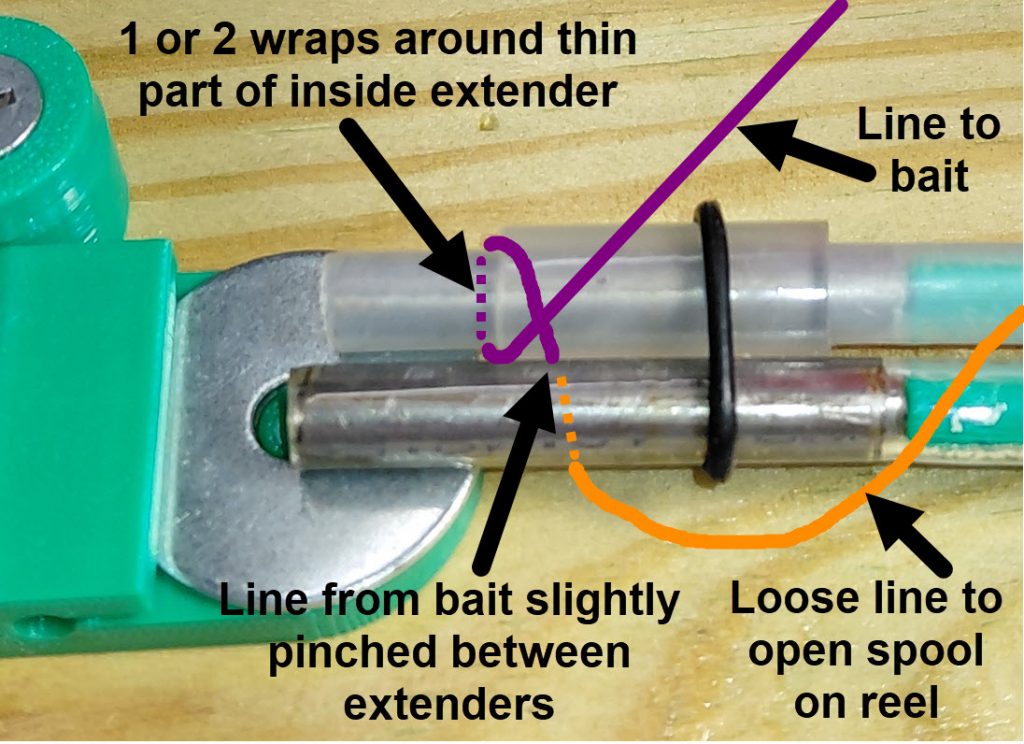

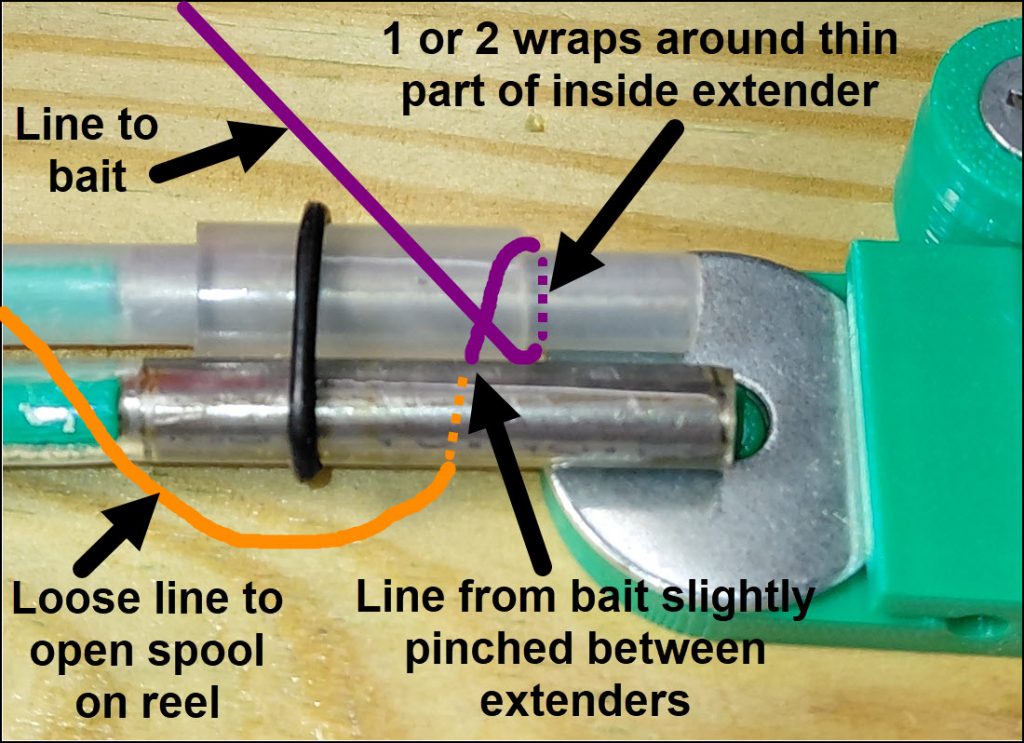

Diagram and procedure of how to put the line into the extenders (for Left-Hand and Right-Hand reel setups).
1) Put the line from the bait (purple) between the two extender to create a slight pinch.
2) Run the other end of the line (orange) under the outside extender and out towards the near edge of the board.
3) Wrap the line from the bait (purple) around the outside of the inside extender and back up through the middle of the two extenders making sure the wrap is on the narrow portion of the extender and not within the "pinch" of the extenders.
4) OPTIONAL - Perform an additional wrap as described in the step above (not shown in the diagram below).
